What Grade Is Cast Gray Iron?

Cast gray iron is a widely used material in various industries due to its excellent properties and versatility. Understanding the different grades of cast gray iron is crucial for selecting the right material for specific applications. This blog post will explore the various grades of cast gray iron, their characteristics, and common uses, helping you make informed decisions when choosing the appropriate grade for your projects.

What are the different grades of cast gray iron?

ASTM A48 Grades

ASTM A48 is a widely recognized standard for classifying cast gray iron. This standard defines several grades based on their tensile strength and other properties. The most common grades include Class 20, Class 25, Class 30, Class 35, and Class 40. Each grade represents a specific minimum tensile strength, with higher numbers indicating stronger materials. For example, Class 20 has a minimum tensile strength of 20,000 psi, while Class 40 boasts a minimum tensile strength of 40,000 psi. The choice of grade depends on the specific requirements of the application, such as load-bearing capacity, wear resistance, and machinability. Cast gray iron grades within the ASTM A48 standard offer a range of options to suit various industrial needs, from automotive components to machine tool bases.

SAE J431 Grades

The Society of Automotive Engineers (SAE) has developed its own classification system for cast gray iron, known as SAE J431. This standard is particularly relevant in the automotive industry and includes grades such as G1800, G2500, G3000, and G4000. The number in each grade designation corresponds to the minimum tensile strength in pounds per square inch (psi). For instance, G3000 has a minimum tensile strength of 3,000 psi. SAE J431 grades of cast gray iron are commonly used in automotive applications such as engine blocks, cylinder heads, and brake components. These grades offer a balance of strength, wear resistance, and thermal conductivity, making them ideal for the demanding conditions found in automotive systems.

EN-GJL Grades

The European Standard EN 1561 defines the EN-GJL grades for cast gray iron. These grades are designated as EN-GJL-150, EN-GJL-200, EN-GJL-250, and EN-GJL-300. The number in each grade represents the minimum tensile strength in megapascals (MPa). For example, EN-GJL-250 has a minimum tensile strength of 250 MPa. EN-GJL grades of cast gray iron are widely used in European industries for applications such as machine tool bases, pump housings, and industrial machinery components. These grades offer excellent damping properties, good machinability, and thermal conductivity, making them suitable for a wide range of engineering applications.

How are cast gray iron grades determined?

Chemical Composition

The chemical composition of cast gray iron plays a crucial role in determining its grade and properties. The primary elements in cast gray iron include carbon, silicon, manganese, phosphorus, and sulfur. The carbon content, typically ranging from 2.5% to 4%, significantly influences the material's strength and hardness. Silicon, usually present between 1% and 3%, promotes the formation of graphite flakes, which give gray iron its characteristic appearance and properties. Manganese, phosphorus, and sulfur are carefully controlled to achieve the desired mechanical properties and microstructure. The balance of these elements determines the grade of cast gray iron, with higher-grade materials often having more tightly controlled compositions to achieve specific performance characteristics.

Microstructure Analysis

Microstructure analysis is a critical method for determining the grade of cast gray iron. The size, shape, and distribution of graphite flakes within the iron matrix significantly influence the material's properties. Higher-grade cast gray irons typically exhibit finer, more evenly distributed graphite flakes, which contribute to improved strength and wear resistance. Metallographers use techniques such as optical microscopy and electron microscopy to examine the microstructure of cast gray iron samples. They assess factors like the graphite flake size, type (e.g., Type A, B, C, D, or E according to ASTM A247), and the nature of the iron matrix (pearlitic, ferritic, or a combination). This detailed analysis helps in confirming the grade of the cast gray iron and ensuring it meets the required specifications for its intended application.

Mechanical Testing

Mechanical testing is an essential step in determining and verifying the grade of cast gray iron. Various tests are conducted to assess the material's strength, hardness, and other mechanical properties. The tensile strength test is particularly important, as it directly correlates with the grade designation in many classification systems. For instance, in ASTM A48, a Class 30 cast gray iron must have a minimum tensile strength of 30,000 psi. Hardness testing, typically using the Brinell scale, provides additional information about the material's resistance to deformation and wear. Other tests may include compression strength, impact resistance, and fatigue testing, depending on the specific requirements of the application. These mechanical tests not only help in determining the grade of cast gray iron but also ensure that the material meets the necessary performance criteria for its intended use.

What are the common applications of different cast gray iron grades?

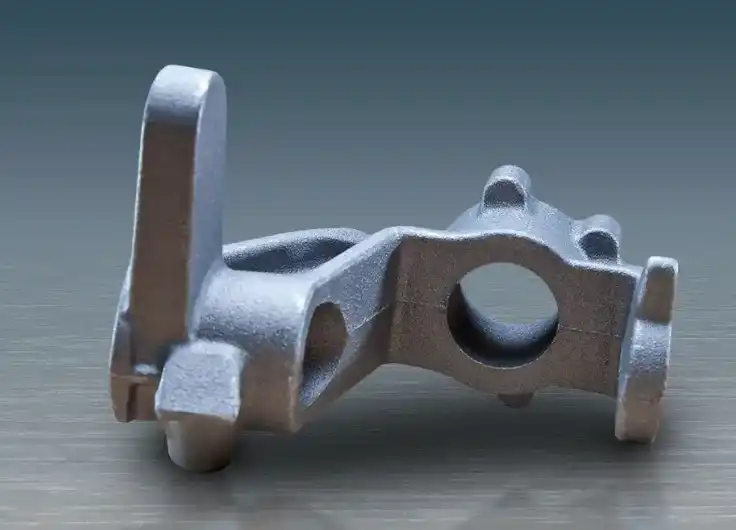

Automotive Industry

Cast gray iron finds extensive use in the automotive industry across various grades. Lower grades like ASTM A48 Class 20 or SAE J431 G1800 are often used for non-critical components such as decorative parts or lightweight housings. Mid-range grades like Class 30 or G3000 are popular choices for engine blocks, cylinder heads, and brake rotors due to their good balance of strength and thermal properties. Higher grades such as Class 40 or G4000 are utilized in high-performance applications where increased strength and wear resistance are required, such as in heavy-duty truck components or high-performance brake systems. The excellent vibration damping properties of cast gray iron make it ideal for reducing noise and vibration in automotive applications, contributing to a smoother and quieter ride.

Industrial Machinery

In the industrial machinery sector, cast gray iron grades are selected based on the specific requirements of each application. Lower grades like EN-GJL-150 or ASTM A48 Class 20 are suitable for machine bases and frames where strength requirements are moderate but good vibration damping is essential. Medium grades such as EN-GJL-250 or Class 30 are commonly used for pump housings, gearboxes, and general-purpose machine components due to their improved strength and wear resistance. High-grade cast gray irons like EN-GJL-300 or Class 40 are preferred for heavy-duty machinery components, such as large industrial press frames or high-load bearing parts. The excellent machinability of cast gray iron across all grades makes it a popular choice for complex machinery components that require precise finishing and tight tolerances.

Construction and Infrastructure

Cast gray iron plays a significant role in construction and infrastructure projects, with different grades suited to various applications. Lower grades like ASTM A48 Class 20 or EN-GJL-150 are often used for decorative architectural elements or light-duty manhole covers. Medium grades such as Class 30 or EN-GJL-250 are commonly employed in municipal castings like storm drain grates, valve boxes, and medium-duty manhole covers. These grades offer a good balance of strength and cost-effectiveness. Higher grades like Class 40 or EN-GJL-300 are utilized in heavy-duty applications such as large storm sewer grates, industrial floor plates, and bridge components where superior strength and wear resistance are crucial. The corrosion resistance of cast gray iron, particularly in atmospheric conditions, makes it an excellent choice for long-lasting infrastructure components.

Conclusion

Cast gray iron grades offer a wide range of options to suit various industrial applications, from automotive components to heavy machinery and infrastructure. The choice of grade depends on factors such as required strength, wear resistance, thermal properties, and cost considerations. Understanding the different classification systems, such as ASTM A48, SAE J431, and EN-GJL, is crucial for selecting the appropriate grade for specific needs. By considering the chemical composition, microstructure, and mechanical properties of cast gray iron, engineers and designers can make informed decisions to ensure optimal performance and longevity of their products. As technology advances, new grades and modifications of cast gray iron continue to emerge, expanding its potential applications across industries.

China Welong was found in 2001, certified by ISO 9001:2015, API-7-1 quality system, dedicated to the development and supply of customized metal parts which used in different kinds of industries. Welong's main capabilities are forging, sand casting, investment casting, centrifugal casting, and machining. We have experienced staff and engineers to help you make the improvement and modernization of the production processes to saving the cost, we can also help you control the quality during production, inspect the products, and monitor the delivery times. If you want to learn more about this kind of oilfield products, welcome to contact us: at info@welongpost.com.

References

1. ASTM International. (2016). ASTM A48/A48M-03(2016) Standard Specification for Gray Iron Castings.
2. SAE International. (2014). SAE J431 Automotive Gray Iron Castings.
3. European Committee for Standardization. (2011). EN 1561:2011 Founding - Grey cast irons.
4. Walton, C. F., & Opar, T. J. (Eds.). (1981). Iron castings handbook. Iron Casting Society, Inc.
5. Davis, J. R. (Ed.). (1996). Cast irons. ASM international.
6. Angus, H. T. (1976). Cast iron: physical and engineering properties. Elsevier.
